Rope Mesh for Helideck

The stainless steel rope mesh can also be used for the safety mesh of offshore helideck. The purpose of installing a helideck safety net is to reduce the risk during the course of helicopter landing and ensure the safety of helicopters and passengers.

The rope helideck mesh is a stainless steel safety system specially manufactured for the surrounding structure of the helideck, and is a surrounded system for the landing deck of an offshore helicopter. But it is not suitable for anti-skid helicopter landing deck nets.

Features of Rope Helideck mesh?

  • High strength
    The stainless steel rope mesh has a high strength that can withstand heavy impact.
  • High flexibility
    The mesh openings are adjustable in accordance with the various requirement. The rope Helideck mesh is light in weight and easily installed.
  • Resistant to rust and corrosion
    The superior stainless steel material is resistant to rust and corrosion. It is quite suitable for the offshore helideck that is exposed to the sun and humid environment for a long time.
  • Maintenance-free and Prolonged service life
    The stainless steel rope mesh doesn’t require any maintenance and the service life could reach to 30 years.

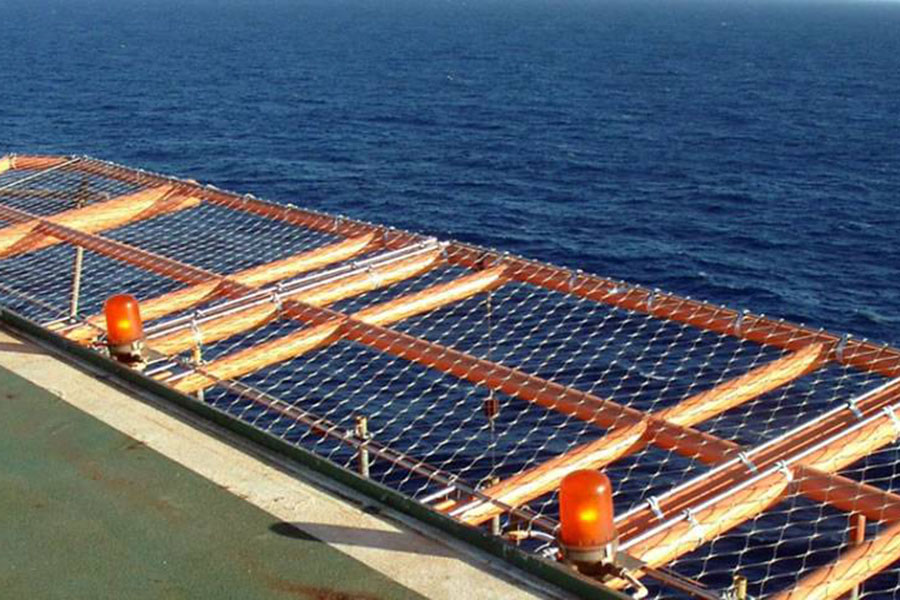

Stainless Steel Rope Mesh Used For Helideck

For measuring purposes the ferruled mesh is assumed to be stretched to create a 60°angle at the top and bottom of the diamond.

  • OW = Opening Width
  • OH = Opening Height
  • d = Cable Diameter
  • θ = 60° Angle

Cable diameter Mesh opening size Nominal break
inch mm inch mm lbs.
1/8 3.2 2×2 51×51 1600
3/32 2.4 3×3 76×76 920
3/32 2.4 2×2 51×51 920
5/64 2.0 2×2 51×51 676
5/64 2.0 1-1/2x 1-1/2 38×38 676
1/16 1.6 1-1/2x 1-1/2 38×38 480
1/16 1.6 1×1 25.4×25.4 480
3/64 1.2 1-1/2x 1-1/2 38×38 270
3/64 1.2 1×1 25.4×25.4 270
Introduction

The stainless steel rope mesh can also be used for the safety mesh of offshore helideck. The purpose of installing a helideck safety net is to reduce the risk during the course of helicopter landing and ensure the safety of helicopters and passengers.

The rope helideck mesh is a stainless steel safety system specially manufactured for the surrounding structure of the helideck, and is a surrounded system for the landing deck of an offshore helicopter. But it is not suitable for anti-skid helicopter landing deck nets.

Features of Rope Helideck mesh?

  • High strength
    The stainless steel rope mesh has a high strength that can withstand heavy impact.
  • High flexibility
    The mesh openings are adjustable in accordance with the various requirement. The rope Helideck mesh is light in weight and easily installed.
  • Resistant to rust and corrosion
    The superior stainless steel material is resistant to rust and corrosion. It is quite suitable for the offshore helideck that is exposed to the sun and humid environment for a long time.
  • Maintenance-free and Prolonged service life
    The stainless steel rope mesh doesn’t require any maintenance and the service life could reach to 30 years.

Stainless Steel Rope Mesh Used For Helideck

Specifications

For measuring purposes the ferruled mesh is assumed to be stretched to create a 60°angle at the top and bottom of the diamond.

  • OW = Opening Width
  • OH = Opening Height
  • d = Cable Diameter
  • θ = 60° Angle

Cable diameter Mesh opening size Nominal break
inch mm inch mm lbs.
1/8 3.2 2×2 51×51 1600
3/32 2.4 3×3 76×76 920
3/32 2.4 2×2 51×51 920
5/64 2.0 2×2 51×51 676
5/64 2.0 1-1/2x 1-1/2 38×38 676
1/16 1.6 1-1/2x 1-1/2 38×38 480
1/16 1.6 1×1 25.4×25.4 480
3/64 1.2 1-1/2x 1-1/2 38×38 270
3/64 1.2 1×1 25.4×25.4 270
