Stainless Steel Ferrule Rope Mesh Netting

Stainless Steel Ferrule Rope Mesh Netting

Stainless steel ferrule rope mesh netting refers to a mesh-like structure formed by combining two neighboring ropes with ferrule which is made of same material as that of the rope wire. The structure fastened by ferrule makes the mesh solid and be able to withstand heavy load and impact. The standard angle of the opening is 60°, but 10° and 90°or other angles are also accepted. It’s an ideal choice for the aviary mesh, zoo mesh, safety screen, exterior building facade, balustrade, etc.

Features

  • Resistance to rust and corrosion
    The stainless steel rope mesh is made of 304 or 316 stainless steel, it’s with excellent resistance to corrosion and rust. So it’s suitable for a wide range of environments.
  • High strength, Solid and robust structure
    The rope wire is combined by ferrule that makes the structure solid and robust, can withstand heavy loads and impact.
  • Light in weight, Soft and Flexible
    It’s light in weight and adjustable for width, length and opening size, so that it is easy to install in many places. Due to stainless steel rope mesh is soft, it will also not cause injuries to human body.
  • Visibility, Attractive appearance
    The diamond-shaped structure allows for passage of light, and produces minimum obstruction to vision. The mesh-like structure creates a beautiful and grand landscape.
  • Maintenance-free and long service life
    It’s very durable, the service life can up to 30 years, and it doesn’t require any maintenance.
  • Environmental friendly
    The non-toxic material does no harm to the healthy of human.

We can provide two types of cable structure for Ferrule Rope Mesh Net.

Wire Cable Structure

For measuring purposes the ferruled mesh is assumed to be stretched to create a 60°angle at the top and bottom of the diamond.

  • OW = Opening Width
  • OH = Opening Height
  • d = Cable Diameter
  • θ = 60° Angle

Cable diameter Mesh opening size Nominal break
inch mm inch mm lbs.
1/8 3.2 2×2 51×51 1600
3/32 2.4 3×3 76×76 920
3/32 2.4 2×2 51×51 920
5/64 2.0 2×2 51×51 676
5/64 2.0 1-1/2x 1-1/2 38×38 676
1/16 1.6 1-1/2x 1-1/2 38×38 480
1/16 1.6 1×1 25.4×25.4 480
3/64 1.2 1-1/2x 1-1/2 38×38 270
3/64 1.2 1×1 25.4×25.4 270

Edging Fittings

Stainless Steel Ferrule Rope Mesh Application

Architectural Rope Mesh Netting

zoo netting

rope mesh fence

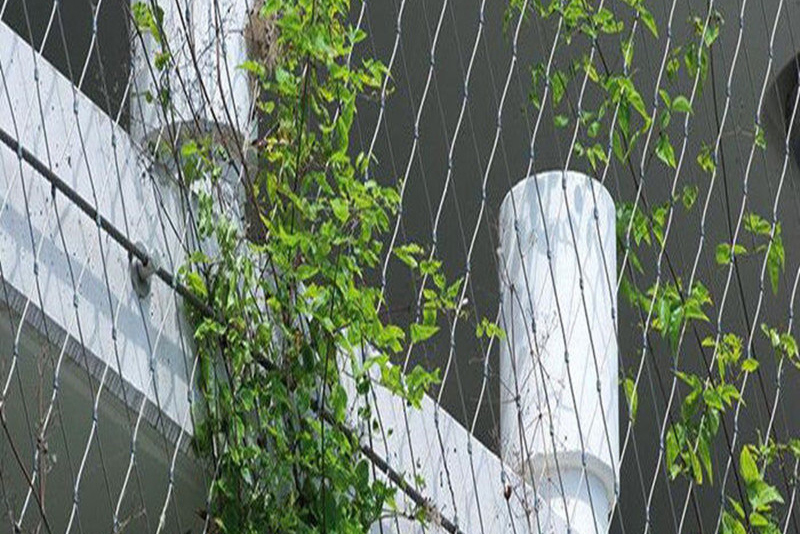

green wall mesh

Specifications

We can provide two types of cable structure for Ferrule Rope Mesh Net.

Wire Cable Structure

For measuring purposes the ferruled mesh is assumed to be stretched to create a 60°angle at the top and bottom of the diamond.

  • OW = Opening Width
  • OH = Opening Height
  • d = Cable Diameter
  • θ = 60° Angle

Cable diameter Mesh opening size Nominal break
inch mm inch mm lbs.
1/8 3.2 2×2 51×51 1600
3/32 2.4 3×3 76×76 920
3/32 2.4 2×2 51×51 920
5/64 2.0 2×2 51×51 676
5/64 2.0 1-1/2x 1-1/2 38×38 676
1/16 1.6 1-1/2x 1-1/2 38×38 480
1/16 1.6 1×1 25.4×25.4 480
3/64 1.2 1-1/2x 1-1/2 38×38 270
3/64 1.2 1×1 25.4×25.4 270

Edging Fittings

Application Cases

Stainless Steel Ferrule Rope Mesh Application

Architectural Rope Mesh Netting

zoo netting

rope mesh fence

green wall mesh

Flexible rope mesh

Stainless Steel Rope Net

rope mesh with frame

Stainless steel ferrule rope mesh
