On both sides of a bridge, within a confined space, rests the immense responsibility of safeguarding lives and property.
Whether it’s a river-crossing bridge weaving through an urban landscape or a footbridge suspended over a mountain valley, the protection system on both sides of the deck is not just about “aesthetics” – it is the last line of defense for lives and property. Traditional iron railings rust easily; tempered glass has a high spontaneous breakage rate; and rigid wire mesh lacks sufficient cushioning. In modern bridge construction, characterized by high humidity, heavy loads, and high standards, a material that combines ultra-high strength, exceptional weather resistance, and visual aesthetics is quietly leading the industry trend – Stainless Steel Wire Rope Mesh.
Why This? – Solving Three Major Pain Points of Traditional Bridge Protection
As a professional solution for bridge infrastructure, stainless steel wire rope mesh is widely used on highways, railways, scenic glass bridges, and municipal viaducts because it directly addresses the “weaknesses” of traditional protection:

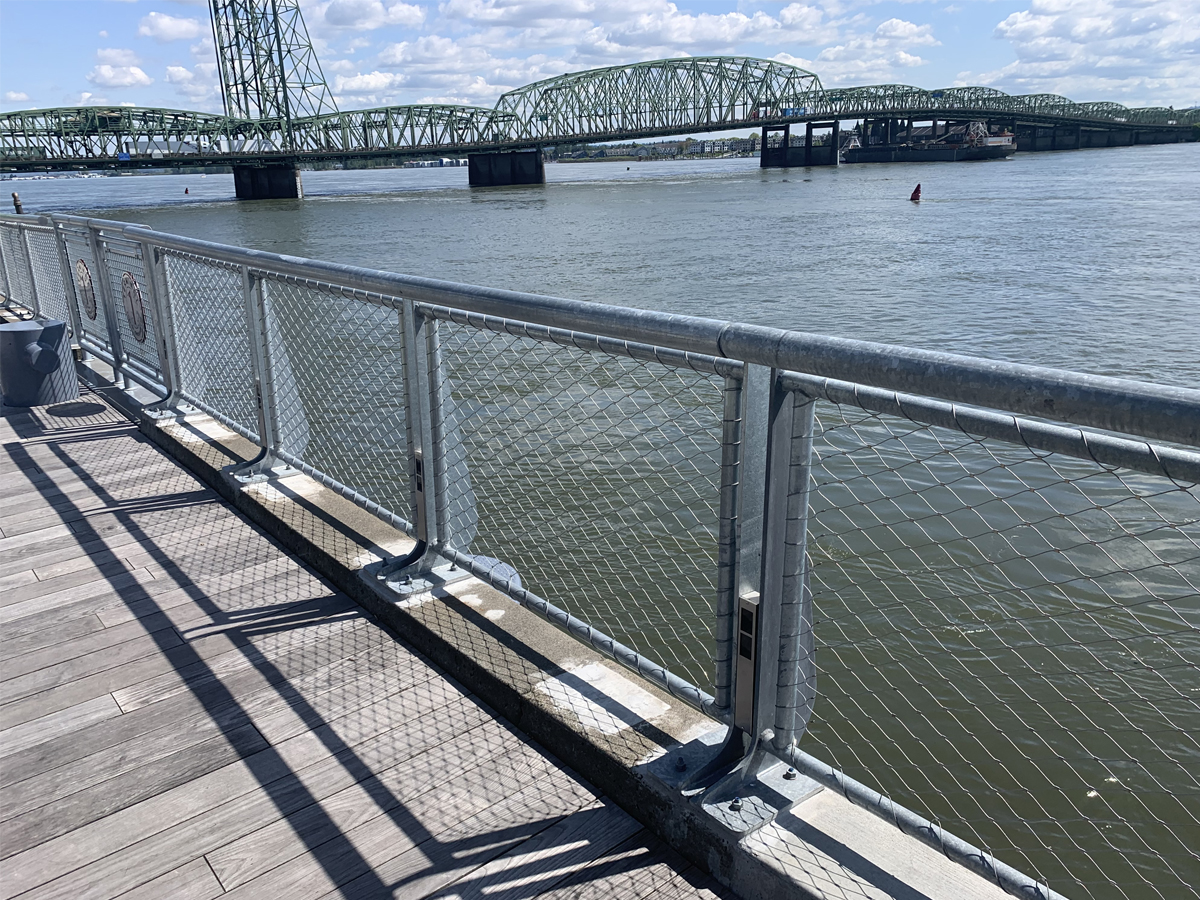

- Solving the “Weather Resistance” Challenge: Bridges are typically exposed to open environments, suffering from acid rain, sea breezes, and de-icing salts. Ordinary steel rusts within a few years, marring the cityscape and posing safety hazards. Stainless steel wire rope mesh is made of 304 or 316L grade stainless steel. 316L, which contains molybdenum, offers extremely high resistance to chloride corrosion, making it especially suitable for coastal cities and northern bridges where de-icing salts are used in winter. It requires no maintenance after installation and has a service life exceeding 30 years.
- Solving the “Cushioning” Problem: In a vehicle impact or accidental fall, rigid cast-iron railings often cause severe damage due to the “hard-on-hard” collision. Stainless steel mesh has a flexible structure. Woven from wire ropes, it rapidly absorbs impact energy through deformation, creating a “buffer layer” that greatly reduces secondary injuries to vehicle occupants or falling objects.
- Solving the “Visual Obstruction” Issue: Many bridges offer scenic views. Solid concrete walls or steel plates not only feel oppressive but also impede airflow. Stainless steel mesh is highly transparent, providing robust protection without blocking the view from inside vehicles or the bridge itself, allowing light and wind to pass through – achieving a lightweight aesthetic that offers transparency and ventilation.
Extreme Performance: The Hardcore Strength Behind the Technical Parameters
In the application scenario of bridge deck protection, reliable data speaks louder than eloquent descriptions. Our stainless steel wire rope protection mesh is engineered for demanding conditions:
1. Premium Material, Resistant to Corrosion
We strictly use SUS304 (for standard inland environments) and SUS316L (for coastal high-salt or chemical environments). Compared to ordinary mild steel railings on the market, our products offer a tensile strength of over 1400 N/mm². The SUS304 grade resists salt spray testing for over 300 hours, while SUS316L exceeds 1000 hours. Even under years of rain and snow erosion, it will never rust and will maintain its metallic sheen.
2. Unique Structure, High Impact Resistance
The wire rope features a 7×7 or 7×19 multi-strand steel core structure, achieving a perfect balance of flexibility and breaking strength. Mesh openings are typically 50mm×50mm or 80mm×80mm diamond-shaped, effectively blocking objects such as bricks or mobile phones (anti-throwing function), while also providing comfortable footing if stepped on.
3. Anti-Climbing and Anti-Vandalism
The mesh surface is continuous and integrated, making it difficult to find leverage points for climbing like on traditional railings. Additionally, the high shear strength of the stainless steel wire rope effectively delays violent break-ins. When combined with professional aluminum alloy or hot-dip galvanized steel frames, it achieves the highest level of physical isolation.
More Than Just Safety: In Switzerland, It’s Even a Load-Bearing Structure
In promoting its application, many designers question the safety of stainless steel rope mesh, assuming a “mesh” is less robust than a “plate.” However, the opposite is true. In high-end domestic and international projects, stainless steel rope mesh is not merely a barrier but part of the structure itself.
Take the Himmelhaus Bridge in Switzerland as an example. At 25.8 meters in total length, this bridge uniquely uses stainless steel mesh instead of traditional suspension cables and part of the railing structure. A wire rope mesh with 80mm long openings not only bears part of the deck load but also serves as a protective railing. Similarly, in the renovation of the suspension bridge in Giswil, Switzerland, Jakob Rope Systems’ Webnet stainless steel mesh not only acted as infill for the railings but also served as an “active load-bearing component” in the bridge’s overall mechanical balance.
This fully demonstrates: Stainless steel wire rope mesh is not just a decoration or simple barrier – it is a structural material that represents modern engineering mechanics.
Versatile Application Scenarios
Stainless steel wire rope mesh demonstrates excellent adaptability in bridge deck protection:
- Expressway Overpasses / Interchanges: As anti-throwing mesh, it effectively prevents objects from being thrown onto vehicles or pedestrians below. Its weather resistance and maintenance-free nature reduce the trouble of lane closures for maintenance.

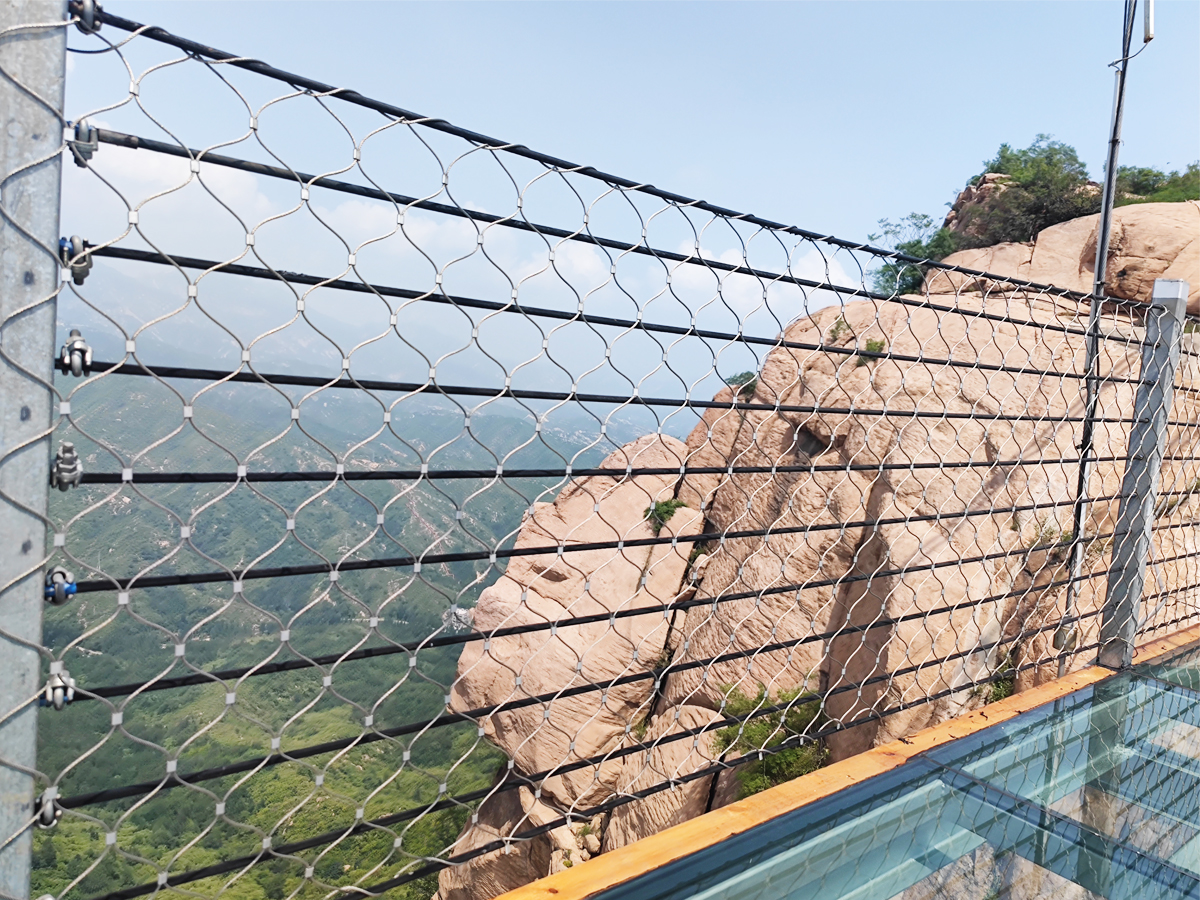

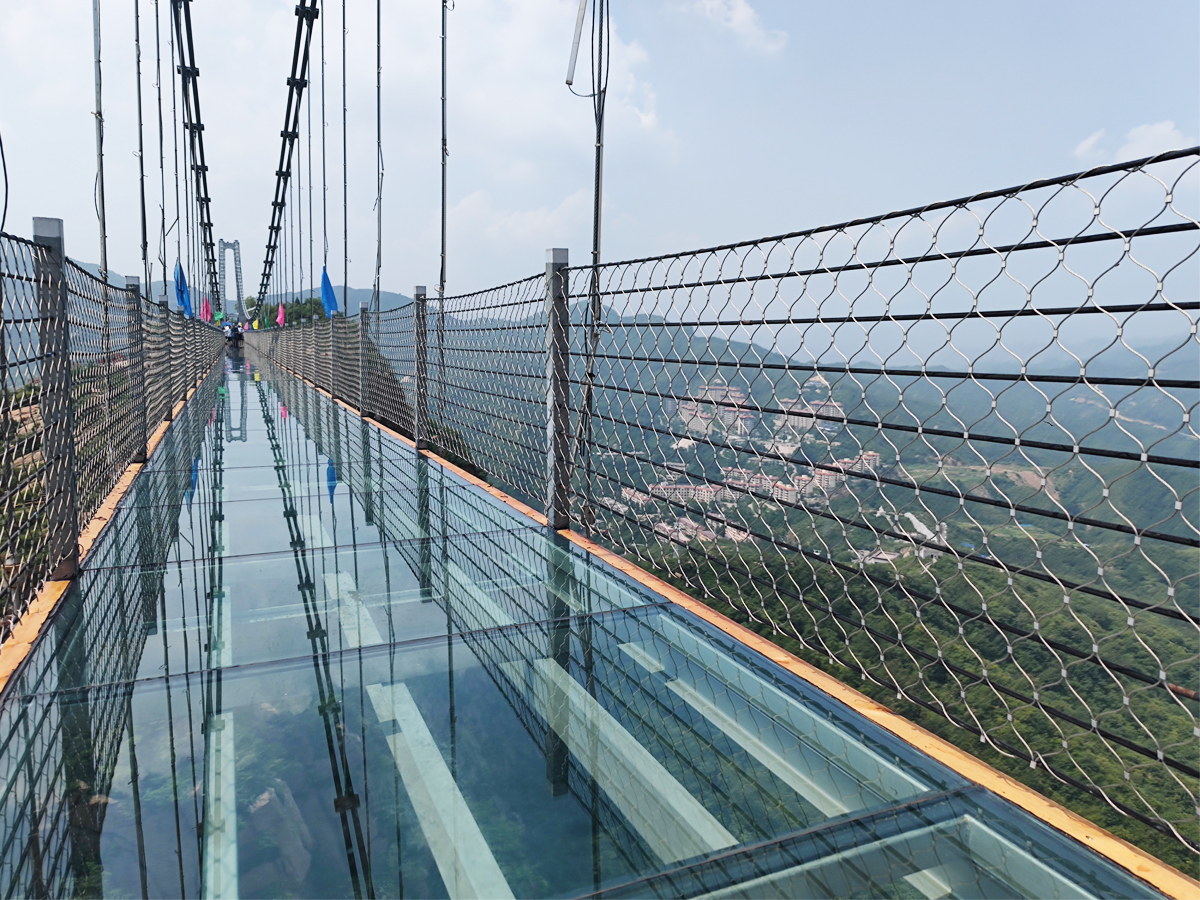

- Scenic Area Pedestrian Cables / Glass Bridges: It blends with the surrounding natural scenery without obstructing the view, providing an “invisible” sense of security. Even if leaned upon, it offers gentle support.

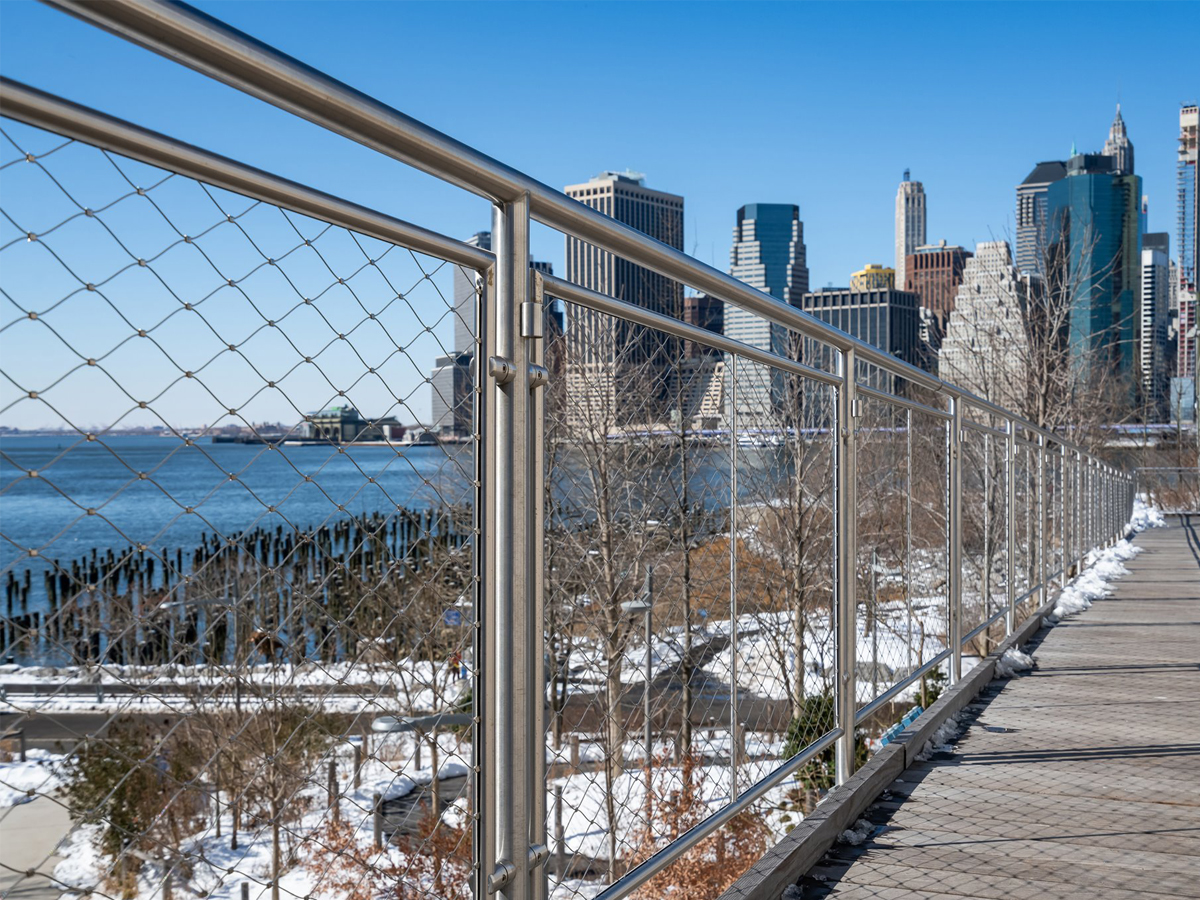

- Municipal Landscape Bridges: Paired with lighting design, the metallic mesh surface creates an excellent technological and artistic ambiance through light reflection and shadow at night.
- Railway Bridges: As enclosure mesh, it prevents falling rocks or foreign objects from intruding into the railway clearance.
Your Wise Choice: Why Choose Us?
We understand that every bridge project is unique. Therefore, we do not provide one-size-fits-all “standard products.” Instead, we offer customized life-safety solutions.
- Tailored Customization: Based on the bridge type, span, and wind speed, we calculate and recommend the most suitable wire rope diameter (typically 1.2mm–6.0mm) and mesh specifications.
- Professional Installation: We provide a complete set of accessories, including tensioning systems, special fasteners, and frames, ensuring the mesh remains taut and flat over the long term for a visually pleasing appearance.
- Eco-Friendly: The product is fully metallic and 100% recyclable, meeting green building evaluation standards.
Conclusion
A bridge connects here and there; a guardrail connects safety and peace of mind.
Choosing stainless steel wire rope protection mesh is not just a material choice – it is an attitude that chooses “long-lasting, transparent, and reliable” safety. In the pursuit of high-quality development, let our bridges be not only as strong as rock but also enduringly beautiful, becoming a striking landscape in the city.
Contact us today to get your exclusive bridge protection solution. Let every bridge wear its resilient “stainless steel armor”
